Part # |
Decription |
| 1 |
110-91659 |
LINK THREAD TAKE-UP LEVER ASM. |
| 2 |
110-91600 |
NEEDLE BAR CRANK H |
| 3 |
B1114-012-000 |
THREAD GUIDE PIN. |
| 4 |
P229-70206 |
NEEDLE BAR |
| 5 |
B1505-552-00A |
PRESSER SPRING |
| 6 |
229-62054 |
THREAD TENSION ASM. |
| 7 |
229-62005 |
THREAD TENSION SPRING |
| 8 |
229-62203 |
FEED SPRING RACK |
| 9 |
110-91204 |
ADJUST LINK SPRING |
| 10 |
229-70313 |
NEEDLE BAR BUSHING LOWER |
| 11 |
B1419-553-000 |
NEEDLE BAR THREAD GUIDE |
| 12 |
229-70313 |
INNER HOOK PRESSER H |
| 13 |
B1109-555-HOB |
THROAT PLATE |
| 14 |
B1613-555-H00 |
FEED DOG (H) |
| 15 |
B1213-552-000-A |
OIL ADJUSTING PIN |
| 16 |
110-92459 |
LUBRICATING BOBBIN ASM. |
| 17 |
SS-6080320-SP |
SCREW 1/8-44 L= 2.5 |
| 18 |
NEEDLE |
134 NM130. |
| 19 |
NEEDLE |
DBX5 #21 |
| 20 |
D1524-555-EBL |
PRESSER FOOT ASM. |
| |
|
|
Close Window
| |

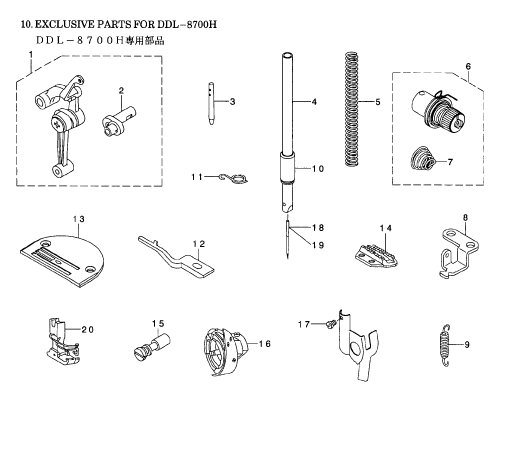

These parts are what makes the DDL-8700H different from the
DDL-8700
