The machine
ensures both beautiful and upgraded seam quality at higher speeds. |
 |
Since the machine comes with a needle-thread take-up mechanism
as well as a looper thread take-up mechanism, to offer upgraded responsiveness
from light- to heavy-weight materials with a lower applied tension, it achieves
well-tensed soft-feeling seams that flexibly correspond to the elasticity of the
material at the maximum sewing speed of 8,000 to 8,500rpm. To offer improved sewing
capabilities as well as to prevent stitching misshapes, the machine is equipped
as standard with the needle thread heat remover and needle cooler. |
| |
|
| |
Run stitching in general fabric

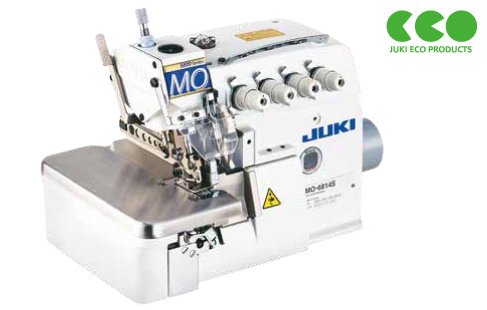

MO-6914S |
|
|
|
|
|
The machine
has been developed with the intention of providing an extended service life. |
|
|

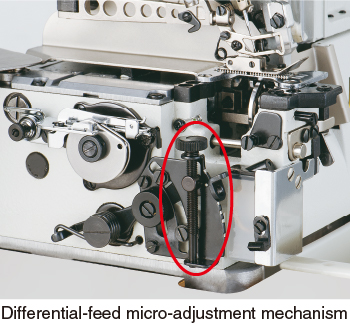

The machine incorporates various mechanisms as standard, such
as a differential-feed micro-adjustment mechanism and an external adjustment mechanism
for adjusting the feed dog inclination as well as increasing the differential
feed ratio, which can be easily adjusted to finish seams that perfectly match
the material to be used. Comfortable operation is all but guaranteed, by a wider
area around the needle entry, the adoption as standard of a micro-lifter feature
that offers improved responsiveness to materials and provides the operator with
upgraded operability, and by the reduction of operating noise and vibration, which
has been achieved by designing an optimally balanced machine. |
| |
|
| |
 |
|
|
|
Further increased
reliability. |
|
|
The introduction of a shield-structured needle bar mechanism
and upper and lower needle bar bushings, contributes to increased durability and
reliability. Additionally, the machine incorporates an improved feed mechanism
and upper looper unit as well as coming standard with a cartridge type oil filter
and cooling fan, thereby ensuring enhanced reliability. |
| |
|
| |
 |
|
|
|
|
Devices intended
for conventional JUKI machines are also interchangeable. |
|
|
Gauges and devices you have used with your existing JUKI machines
are also interchangeable with no additional machining required (excluding the
LB Series). This eliminates both the waste of resources and unwanted extra costs. |
| |
|
| |
 |
|
